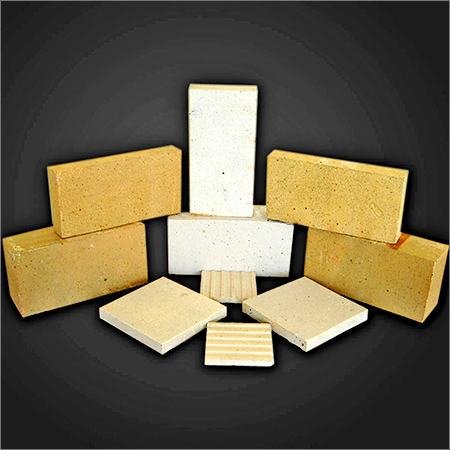

Refractory Fire Bricks

Next > >

$Refractory Fire Bricks$

Send Inquiry

Product Code : RU 05

Brand Name : REFRACTORY UDHYOG

Product Description

Refractory Fire Bricks offered by us are acknowledged for their optimum quality, high strength, low thermal conductivity, light weight, high strength, accurate dimensions, low heat conductivity and many more features. Therefore, High Alumina Fire Bricks provide by us are extensively used for the inner lining of incinerators and furnaces. These are precisely processed by our highly skilled team of workforce using high grade clay and contemporary technology. As a result, we are reckoned as a noted Exporter, Manufacturer, Supplier and Distributor the domain.

Features:

Uniform pores with accurate distribution
Dimensional stability
Dimensionally accurate
Excellent corrosion resistance
Free from dust particles
High resistance to spalling

Technical Specification

Brand name	Al2O3 % min	Fe2O3 % mix	A.P. % Min	B.D.Gms/cc min	C.C.S kgs/cm2 min	P.C.E orton min	R.U.L. Ta1c Min.	P.L.C. % Max
Avon-30 (IS:6)	30	2.2	25	1.9	250	31	1350 C	1.5 at 1350 C/2 Hrs
Avon-40 (IS:8)	40	2.5	23	2.1	350	32	1400 C	1.0 at 1450 C/2 Hrs
Avon-45	45	2.6	21	2.2	370	32	1420 C	1.5 at 1450 C/2 Hrs
Avon-50	50	2.75	23	2.3	400	32.5	1430 C	1.5 at 1450 C/2 Hrs
Avon-55	55	2.9	23	2.4	400	33	1440 C	1.5 at 1450 C/2 Hrs
Avon-60	60	3	23	2.55	430	34	1450 C	1.5 at 1500 C/2 Hrs
Avon-65	65	3	23	2.6	450	34.5	1460 C	2.0 at 1500 C/2 Hrs
Avon-70	70	3.2	23	2.65	500	35	1470 C	2.0 at 1500 C/2 Hrs
Avon-80	80	3.5	21	2.75	650	37	1500 C	2.0 at 1500 C/2 Hrs
